In this chapter, we examine the representation of dynamic sets by simple data structures that use pointers. Although many complex data structures can be fashioned using pointers, we present only the redimentary ones: stacks, queues, linked lists, and rooted trees. We also discuss a method by which objects and pointers can be synthesized from arrays.
Stacks and queues are dynamic sets in which the element removed from the set by the DELETE operation is prespecified. In a stack, the element deleted from the set is the one most recently inserted: the stack implements a last-in, first-out, or LIFO, policy. Similarly, in a queue, the element deleted is always the one that has been in the set for the longest time: the queue implements a first-in, first out, or FIFO, policy. There are several efficient ways to implement stacks and queues on a computer. In this section we show how to use a simple array to implement each.
The INSERT operation on a stack is often called PUSH, and the DELETE operation, which does not take an element argument, is often called POP. These names are allusions to physical stacks, such as the spring-loaded stacks of plates used in cafeterias. The order in which plates are popped from the stack is the reverse of the order in which they were pushed onto the stack, since only the top plate is accessible.

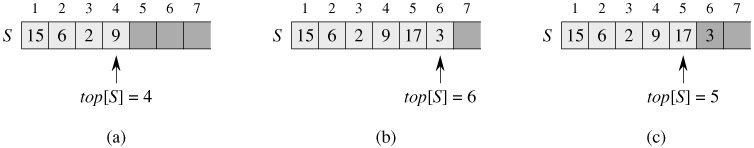

As shown in Figure 10.1, we can implement a stack of at most n elements with an array S[1, ‥ n]. The array has an attribute top[S] that indexes the most recently inserted element. The stack consists of elements S[1 ‥ top[S]], where S[1] is the element at the bottom of the stack and S[top[S]] is the element at the top.
When top[S] = 0, the stack contains no elements and is empty. The stack can be tested for emptiness by the query operation STACK-EMPTY. If an empty stack is popped, we say the stack underflows, which is normally an error. If top[S] exceeds n, the stack overflows. (In our pseudocode implementation, we don't worry about stack overflow.)
The stack operations can each be implemented with a few lines of code.
STACK-EMPTY(S) 1 if top[S] = 0 2 then return TRUE 3 else return FALSE PUSH(S, x) 1 top[S] ← top[S] + 1 2 S[top[S]] ← x POP(S) 1 if STACK-EMPTY(S) 2 then error "underflow" 3 else top[S] ← top[S] - 1 4 return S[top[S] + 1]
Figure 10.1 shows the effects of the modifying operations PUSH and POP. Each of the three stack operations takes O(1) time.
We call the INSERT operation on a queue ENQUEUE, and we call the DELETE operation DEQUEUE; like the stack operation POP, DEQUEUE takes no element argument. The FIFO property of a queue causes it to operate like a line of people in the registrar's office. The queue has a head and a tail. When an element is enqueued, it takes its place at the tail of the queue, just as a newly arriving student takes a place at the end of the line. The element dequeued is always the one at the head of the queue, like the student at the head of the line who has waited the longest. (Fortunately, we don't have to worry about computational elements cutting into line.)

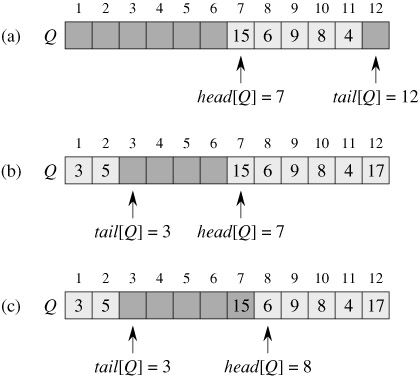

Figure 10.2 shows one way to implement a queue of at most n - 1 elements using an array Q[1 ‥ n]. The queue has an attribute head[Q] that indexes, or points to, its head. The attribute tail[Q] indexes the next location at which a newly arriving element will be inserted into the queue. The elements in the queue are in locations head[Q], head[Q] +1,..., tail[Q] - 1, where we "wrap around" in the sense that location 1 immediately follows location n in a circular order. When head[Q] = tail[Q], the queue is empty. Initially, we have head[Q] = tail[Q] = 1. When the queue is empty, an attempt to dequeue an element causes the queue to underflow. When head[Q] = tail[Q] + 1, the queue is full, and an attempt to enqueue an element causes the queue to overflow.
In our procedures ENQUEUE and DEQUEUE, the error checking for underflow and overflow has been omitted. (Exercise 10.1-4 asks you to supply code that checks for these two error conditions.)
ENQUEUE(Q, x) 1 Q[tail[Q]] ← x 2 if tail[Q] = length[Q] 3 then tail[Q] ← 1 4 else tail[Q] ← tail[Q] + 1 DEQUEUE(Q) 1 x ← Q[head[Q]] 2 if head[Q] = length[Q] 3 then head[Q] ← 1 4 else head[Q] ← head[Q] + 1 5 return x
Figure 10.2 shows the effects of the ENQUEUE and DEQUEUE operations. Each operation takes O(1) time.
 |
Using Figure 10.1 as a model, illustrate the result of each operation in the sequence PUSH(S, 4), PUSH(S, 1), PUSH(S, 3), POP(S), PUSH(S, 8), and POP(S) on an initially empty stack S stored in array S[1 ‥ 6].
|
|
Explain how to implement two stacks in one array A[1 ‥ n] in such a way that neither stack overflows unless the total number of elements in both stacks together is n. The PUSH and POP operations should run in O(1) time.
|
|
Using Figure 10.2 as a model, illustrate the result of each operation in the sequence ENQUEUE(Q, 4), ENQUEUE(Q, 1), ENQUEUE(Q, 3), DEQUEUE(Q), ENQUEUE(Q, 8), and DEQUEUE(Q) on an initially empty queue Q stored in array Q[1 ‥ 6].
|
|
Whereas a stack allows insertion and deletion of elements at only one end, and a queue allows insertion at one end and deletion at the other end, a deque (double-ended queue) allows insertion and deletion at both ends. Write four O(1)-time procedures to insert elements into and delete elements from both ends of a deque constructed from an array.
|
|
|
