32.1 The naive string-matching algorithm

The naive algorithm finds all valid shifts using a loop that checks the condition P[1 ‥ m] = T [s + 1 ‥ s + m] for each of the n - m + 1 possible values of s.

NAIVE-STRING-MATCHER(T, P)
1 n ← length[T]
2 m ← length[P]
3 for s ← 0 to n - m
4     do if P[1 ‥ m] = T[s + 1 ‥ s + m]
5           then print "Pattern occurs with shift" s

The naive string-matching procedure can be interpreted graphically as sliding a "template" containing the pattern over the text, noting for which shifts all of the characters on the template equal the corresponding characters in the text, as illustrated in Figure 32.4. The for loop beginning on line 3 considers each possible shift explicitly. The test on line 4 determines whether the current shift is valid or not; this test involves an implicit loop to check corresponding character positions until all positions match successfully or a mismatch is found. Line 5 prints out each valid shift s.

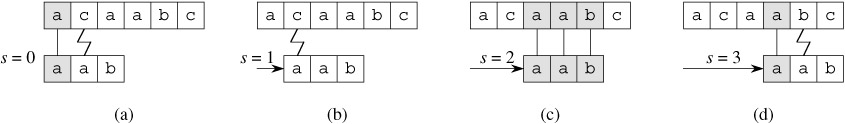

Figure 32.4: The operation of the naive string matcher for the pattern P = aab and the text T = acaabc. We can imagine the pattern P as a "template" that we slide next to the text. (a)-(d) The four successive alignments tried by the naive string matcher. In each part, vertical lines connect corresponding regions found to match (shown shaded), and a jagged line connects the first mismatched character found, if any. One occurrence of the pattern is found, at shift s = 2, shown in part (c).

Procedure NAIVE-STRING-MATCHER takes time O((n - m + 1)m), and this bound is tight in the worst case. For example, consider the text string aⁿ (a string of n a's) and the pattern a^m. For each of the n - m +1 possible values of the shift s, the implicit loop on line 4 to compare corresponding characters must execute m times to validate the shift. The worst-case running time is thus Θ((n - m + 1)m), which is Θ(n²) if m = ⌊n/2⌋. The running time of NAIVE-STRING-MATCHER is equal to its matching time, since there is no preprocessing.

As we shall see, NAIVE-STRING-MATCHER is not an optimal procedure for this problem. Indeed, in this chapter we shall show an algorithm with a worst-case preprocessing time of Θ(m) and a worst-case matching time of Θ(n). The naive string-matcher is inefficient because information gained about the text for one value of s is entirely ignored in considering other values of s. Such information can be very valuable, however. For example, if P = aaab and we find that s = 0 is valid, then none of the shifts 1, 2, or 3 are valid, since T [4] = b. In the following sections, we examine several ways to make effective use of this sort of information.

Exercises 32.1-1

Show the comparisons the naive string matcher makes for the pattern P = 0001 in the text T = 000010001010001.

Exercises 32.1-2

Suppose that all characters in the pattern P are different. Show how to accelerate NAIVE-STRING-MATCHER to run in time O(n) on an n-character text T.

Exercises 32.1-3

Suppose that pattern P and text T are randomly chosen strings of length m and n, respectively, from the d-ary alphabet Σ_d = {0, 1, . . . , d - 1}, where d ≥ 2. Show that the expected number of character-to-character comparisons made by the implicit loop in line 4 of the naive algorithm is

over all executions of this loop. (Assume that the naive algorithm stops comparing characters for a given shift once a mismatch is found or the entire pattern is matched.) Thus, for randomly chosen strings, the naive algorithm is quite efficient.

Exercises 32.1-4

Suppose we allow the pattern P to contain occurrences of a gap character ⋄ that can match an arbitrary string of characters (even one of zero length). For example, the pattern ab⋄ba⋄c occurs in the text cabccbacbacab as

and as

Note that the gap character may occur an arbitrary number of times in the pattern but is assumed not to occur at all in the text. Give a polynomial-time algorithm to determine if such a pattern P occurs in a given text T , and analyze the running time of your algorithm.
